Clinic for a dry climate
Rural health post, thick walls, night cooling, no mechanical plant
Rural health post, thick walls, night cooling, no mechanical plant.

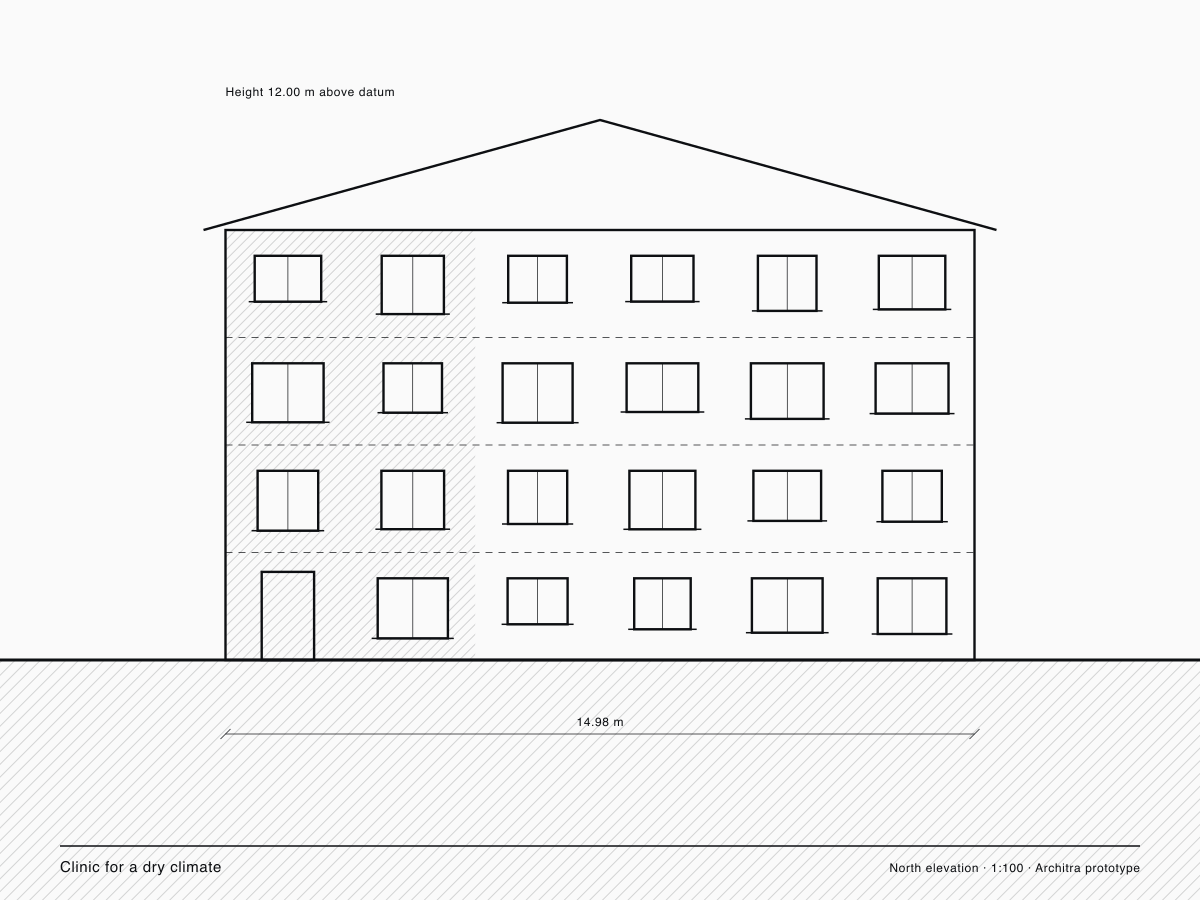

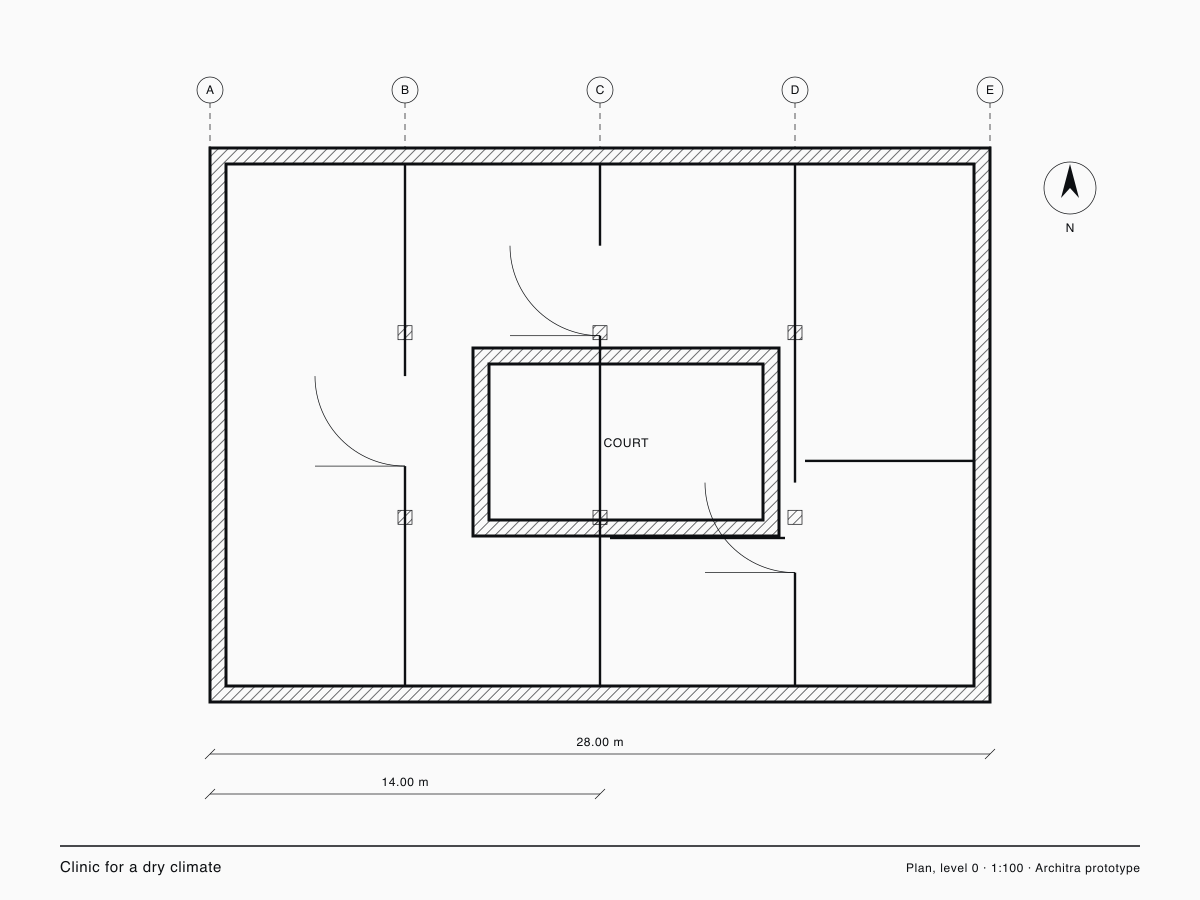

Drawn at 1:100 with details at 1:20. Plans, sections and elevations, plus a construction detail sheet.
Dimensions are metric throughout. Structural sizes are indicative and need checking against local code.
- General architecture
- Healthcare
- Clay
- Stone
- Dry
- Format
- Size
- 0.0 MB
- Fingerprinted
- 2026-08-03
- SHA-256
- 23575c317554da755f6f412b4b313c84c727a3b7ad0eef6aa19da01c3ae29cac
Architra hashes every upload once, when it arrives. Anyone holding the file can calculate the same digest and compare it with the SHA-256 above: a buyer checks that the download is the file this page describes, and the author has a dated record that it was here under their account.
This work is mine and should not be here
Tell us who you are and how this drawing is yours. If the claim holds, the work comes off the marketplace.
