Courtyard house, timber frame
Permit set for a 240 m² CLT house around a planted courtyard
Permit set for a 240 m² CLT house around a planted courtyard.

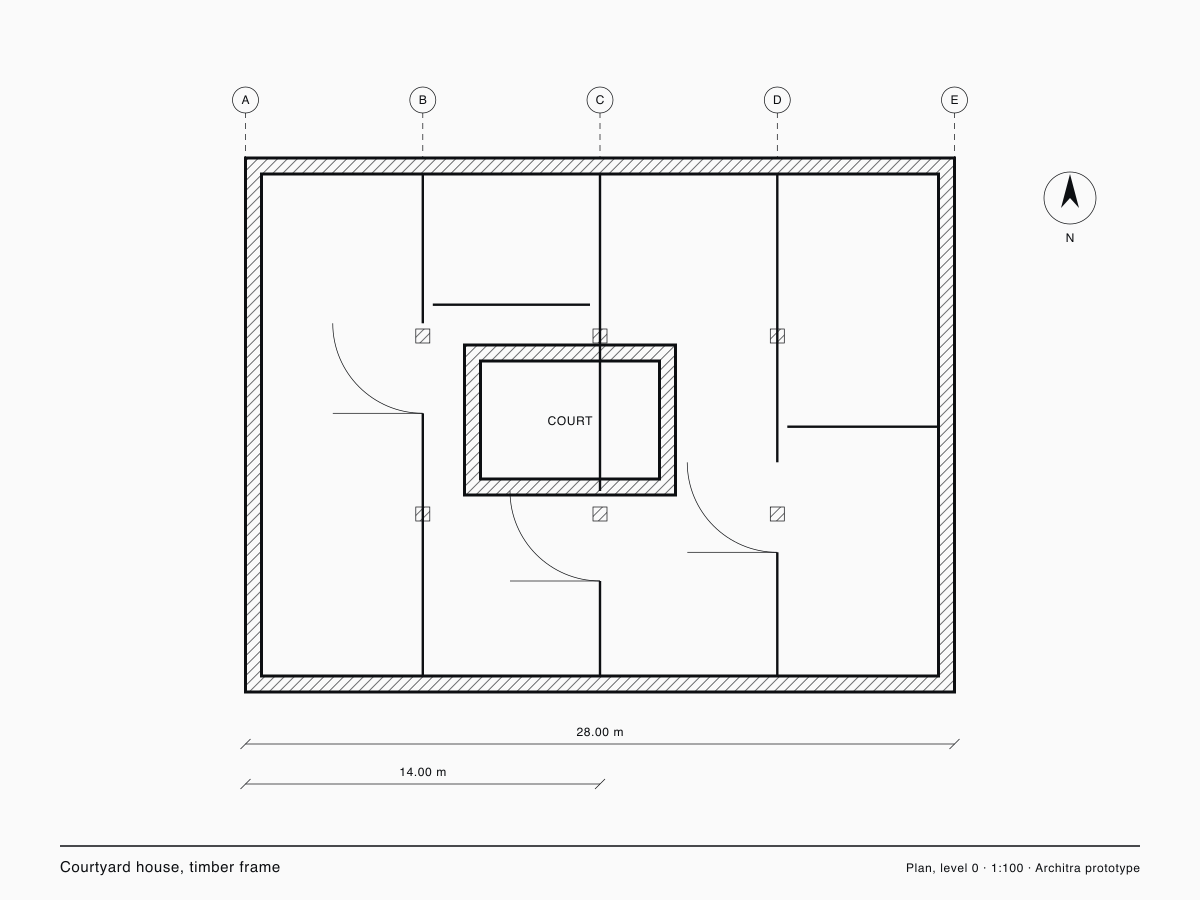

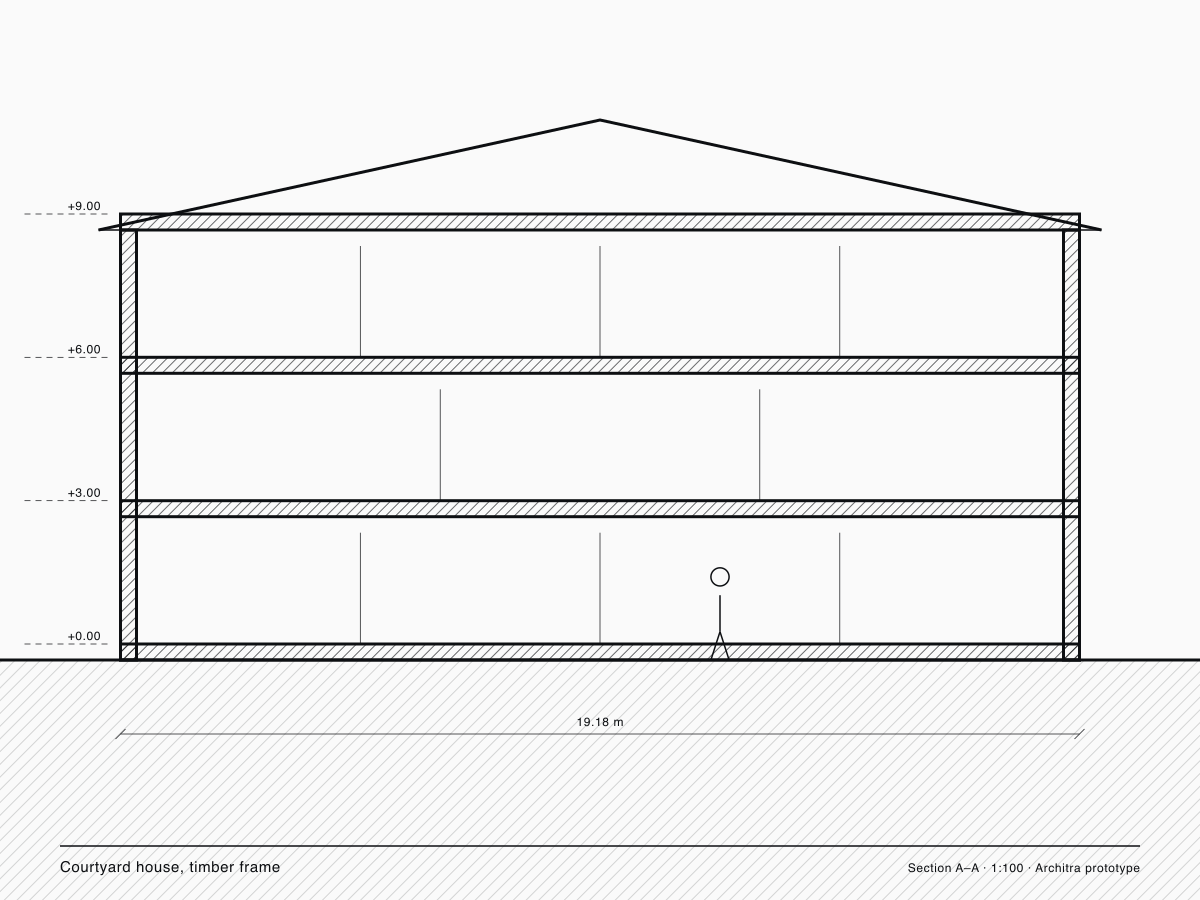

Drawn at 1:100 with details at 1:20. Plans, sections and elevations, plus a construction detail sheet.
Dimensions are metric throughout. Structural sizes are indicative and need checking against local code.
- General architecture
- Residential
- Wood
- Temperate
- Format
- Size
- 0.0 MB
- Fingerprinted
- 2026-08-03
- SHA-256
- 5b8de63a83e0aed602d90c1909c79dbc51b17e6cae1f92e602f567b0e20d850f
Architra hashes every upload once, when it arrives. Anyone holding the file can calculate the same digest and compare it with the SHA-256 above: a buyer checks that the download is the file this page describes, and the author has a dated record that it was here under their account.
This work is mine and should not be here
Tell us who you are and how this drawing is yours. If the claim holds, the work comes off the marketplace.
